ESPboy_Sub1GHzInspector

Demo video

The ESPboy CC1101 chip module allows you to inspect Sub1Ghz signals (300-348MHz, 387-464MHz, 779-928MHz). Scan, decode, store to open garage doors, barriers, IoT sensors...

You can buy this module ready-made or make it yourself.

1

2

3

1. Buy CC1101

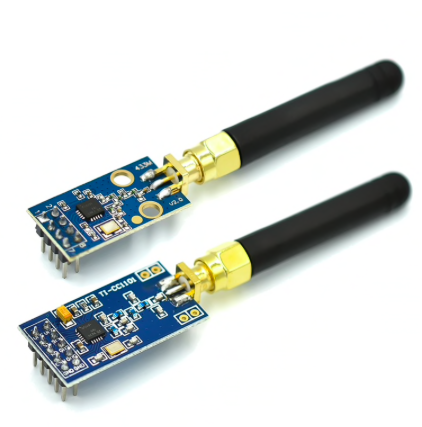

BLUE

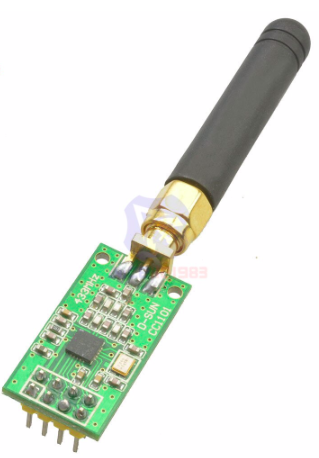

GREEN

2. Connect CC1101 to ESPboy

for blue CC1101 version

  • 1 >> GND
  • 2 >> VCC
  • 3 >> D4, GPIO2
  • 4 >> D8, GPIO15, SS
  • 5 >> D5, GPIO14, SCK
  • 6 >> D7, GPIO13, MOSI
  • 7 >> D6, GPIO12, MISO
  • 8 >> RX, GPIO3, RX

for green CC1101 version

  • 3V3 >> VCC
  • GND >> GND
  • SS(15)D8 >> CSN
  • SCK(14)D5 >> SCK
  • D4(2) >> G0D0
  • RX(3) >> GD02
  • MISO(12)D6 >> MISO
  • MOSI(13)D7 >> MOSI

3. Upload this firmware

NOTE: Before compilation, set Arduino IDE settings

  • Board: ESP8266 WeMos D1 mini
  • CPU frequency: 160Mhz

4. Useful links

Check the description here
